96W Electronic Transformers – TA, TU Series
No Minimum Load for LED and Halogen Lighting
- ETL, UL recognized
- Short circuit protection
- Auto reset and thermal protection
- Soft start technology
- Fully dimmable 96W Electronic Transformers
- Low profile, small form factor
- Advanced no load technology
- High power factor
96W Electronic Transformers – TA Series 120V AC 50/60Hz, 0.8A Input
Download the Spec Sheet (PDF) 12V Output > or 24V Output >
| Model Number | Output Voltage | Load Type | Dimming | Form Factor | IP Rating |
|---|---|---|---|---|---|
| TA96WA12 | 12V AC | Incandescent and Halogen Bulbs | ELV Dimmable | E5 | IP 44 |
| TA96WA24 | 24V AC | Incandescent and Halogen Bulbs | ELV Dimmable | E5 | IP 44 |

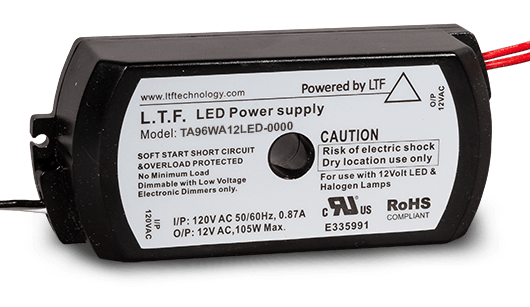

| TA96WA12LED | 12V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | E5 | IP 44 |
| TA96WA24LED | 24V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | E5 | IP 44 |
| TA96WD12LED | 12V DC | LED Strips, LED Bulbs, Incandescent & Halogen Bulbs | ELV Dimmable | E6 | IP 44 |
| TA96WD24LED | 24V DC | LED Strips, LED Bulbs, Incandescent & Halogen Bulbs | ELV Dimmable | E6 | IP 44 |
| TA96WA12LEDD010 | 12V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | E5 | IP 44 |
| TA96WA24LEDD010 | 24V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | E5 | IP 44 |
| TA96WD12LEDD010 | 12V DC | LED Strips, LED Bulbs, Incandescent & Halogen Bulbs | 0-10V and ELV Dimmable | E6 | IP 44 |
| TA96WD24LEDD010 | 24V DC | LED Strips, LED Bulbs, Incandescent & Halogen Bulbs | 0-10V and ELV Dimmable | E6 | IP 44 |
UL Listed 96W Electronic Transformers – TA Series 120V AC 50/60Hz, 0.8A Input
For Indoor and Outdoor Applications
Download the Spec Sheet (PDF) 12V Output > or 24V Output >
| Model Number | Output Voltage | Load Type | Dimming | UL Listed Remote Enclosure | Indoor or Outdoor Use |
|---|---|---|---|---|---|
| TA96WA12RE | 12V AC | Incandescent and Halogen Bulbs | ELV Dimmable | G2 | Indoor |
| TA96WA24RE | 24V AC | Incandescent and Halogen Bulbs | ELV Dimmable | G2 | Indoor |
| TA96WA12REO | 12V AC | Incandescent and Halogen Bulbs | ELV Dimmable | G3 | Outdoor |
| TA96WA24REO | 24V AC | Incandescent and Halogen Bulbs | ELV Dimmable | G3 | Outdoor |
| TA96WA12LEDRE | 12V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | G2 | Indoor |
| TA96WA24LEDRE | 24V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | G2 | Indoor |
| TA96WA12LEDREO | 12V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | G3 | Outdoor |
| TA96WA24LEDREO | 24V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | G3 | Outdoor |
| TA96WD12LEDRE | 12V DC | LED Strips, LED Bulbs, Incandescent & Halogen Bulbs | ELV Dimmable | G2 | Indoor |
| TA96WD24LEDRE | 24V DC | LED Strips, LED Bulbs, Incandescent & Halogen Bulbs | ELV Dimmable | G2 | Indoor |
| TA96WD12LEDREO | 12V DC | LED Strips, LED Bulbs, Incandescent & Halogen Bulbs | ELV Dimmable | G3 | Outdoor |
| TA96WD24LEDREO | 24V DC | LED Strips, LED Bulbs, Incandescent & Halogen Bulbs | ELV Dimmable | G3 | Outdoor |
| TA96WA12LEDD010RE | 12V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | G2 | Indoor |
| TA96WA24LEDD010RE | 24V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | G2 | Indoor |
| TA96WA12LEDD010REO | 12V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | G3 | Outdoor |
| TA96WA24LEDD010REO | 24V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | G3 | Outdoor |
| TA96WD12LEDD010RE | 12V DC | LED Strips, LED Bulbs, Incandescent & Halogen Bulbs | 0-10V and ELV Dimmable | G2 | Indoor |
| TA96WD24LEDD010RE | 24V DC | LED Strips, LED Bulbs, Incandescent & Halogen Bulbs | 0-10V and ELV Dimmable | G2 | Indoor |
| TA96WD12LEDD010REO | 12V DC | LED Strips, LED Bulbs, Incandescent & Halogen Bulbs | 0-10V and ELV Dimmable | G3 | Outdoor |
| TA96WD24LEDD010REO | 24V DC | LED Strips, LED Bulbs, Incandescent & Halogen Bulbs | 0-10V and ELV Dimmable | G3 | Outdoor |
96W Electronic Transformers – TU Series 220-240V AC 50/60Hz, 0.43A Input
Download the Spec Sheet (PDF) 12V Output > or 24V Output >
| Model Number | Output Voltage | Load Type | Dimming | Form Factor | IP Rating |
|---|---|---|---|---|---|
| TU96WA12 | 12V AC | Incandescent and Halogen Bulbs | ELV Dimmable | E5 | IP 44 |
| TU96WA24 | 24V AC | Incandescent and Halogen Bulbs | ELV Dimmable | E5 | IP 44 |
| TU96WA12LED | 12V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | E5 | IP 44 |
| TU96WA24LED | 24V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | E5 | IP 44 |
| TU96WD12LED | 12V DC | LED Strips, LED Bulbs, Incandescent & Halogen Bulbs | ELV Dimmable | E6 | IP 44 |
| TU96WD24LED | 24V DC | LED Strips, LED Bulbs, Incandescent & Halogen Bulbs | ELV Dimmable | E6 | IP 44 |
| TU96WA12LEDD010 | 12V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | E5 | IP 44 |
| TU96WA24LEDD010 | 24V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | E5 | IP 44 |
| TU96WD12LEDD010 | 12V DC | LED Strips, LED Bulbs, Incandescent & Halogen Bulbs | 0-10V and ELV Dimmable | E6 | IP 44 |
| TU96WD24LEDD010 | 24V DC | LED Strips, LED Bulbs, Incandescent & Halogen Bulbs | 0-10V and ELV Dimmable | E6 | IP 44 |
UL Listed 96W Electronic Transformers – TU Series 220-240V AC 50/60Hz, 0.43A Input
For Indoor and Outdoor Applications
Download the Spec Sheet (PDF) 12V Output > or 24V Output >
| Model Number | Output Voltage | Load Type | Dimming | UL Listed Remote Enclosure | Indoor or Outdoor Use |
|---|---|---|---|---|---|
| TU96WA12RE | 12V AC | Incandescent and Halogen Bulbs | ELV Dimmable | G2 | Indoor |
| TU96WA24RE | 24V AC | Incandescent and Halogen Bulbs | ELV Dimmable | G2 | Indoor |
| TU96WA12REO | 12V AC | Incandescent and Halogen Bulbs | ELV Dimmable | G3 | Outdoor |
| TU96WA24REO | 24V AC | Incandescent and Halogen Bulbs | ELV Dimmable | G3 | Outdoor |
| TU96WA12LEDRE | 12V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | G2 | Indoor |
| TU96WA24LEDRE | 24V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | G2 | Indoor |
| TU96WA12LEDREO | 12V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | G3 | Outdoor |
| TU96WA24LEDREO | 24V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | G3 | Outdoor |
| TU96WD12LEDRE | 12V DC | LED Strips, LED Bulbs, Incandescent & Halogen Bulbs | ELV Dimmable | G2 | Indoor |
| TU96WD24LEDRE | 24V DC | LED Strips, LED Bulbs, Incandescent & Halogen Bulbs | ELV Dimmable | G2 | Indoor |
| TU96WD12LEDREO | 12V DC | LED Strips, LED Bulbs, Incandescent & Halogen Bulbs | ELV Dimmable | G3 | Outdoor |
| TU96WD24LEDREO | 24V DC | LED Strips, LED Bulbs, Incandescent & Halogen Bulbs | ELV Dimmable | G3 | Outdoor |
| TU96WA12LEDD010RE | 12V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | G2 | Indoor |
| TU96WA24LEDD010RE | 24V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | G2 | Indoor |
| TU96WA12LEDD010REO | 12V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | G3 | Outdoor |
| TU96WA24LEDD010REO | 24V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | G3 | Outdoor |
| TU96WD12LEDD010RE | 12V DC | LED Strips, LED Bulbs, Incandescent & Halogen Bulbs | 0-10V and ELV Dimmable | G2 | Indoor |
| TU96WD24LEDD010RE | 24V DC | LED Strips, LED Bulbs, Incandescent & Halogen Bulbs | 0-10V and ELV Dimmable | G2 | Indoor |
| TU96WD12LEDD010REO | 12V DC | LED Strips, LED Bulbs, Incandescent & Halogen Bulbs | 0-10V and ELV Dimmable | G3 | Outdoor |
| TU96WD24LEDD010REO | 24V DC | LED Strips, LED Bulbs, Incandescent & Halogen Bulbs | 0-10V and ELV Dimmable | G3 | Outdoor |
