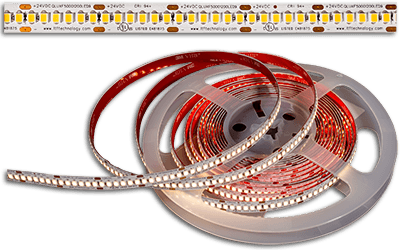

QFLEX Series Flexible High CRI LED Tape
LTF’s Architectural Grade QFLEX series High CRI LED tape allows lighting designers the freedom to get creative. Curved surfaces, tight spaces, long runs and short cut lengths are no problem. And with high efficacy lumen output, superior color rendering (CRI 90+, 85+), optional Dim to Warm feature (2700K CCT dims to 1800K), and 2 channel adjustable CCT (2000K – 4000K) options, you can be sure your designs are as practical as they are beautiful.
| Dim to Warm | |||||||
| Model Number | CCT | Input Voltage | CRI/R9 | W/ft | L/ft | Data Sheet | |
| QLUXF50001200LED2718WD | 2700K dims to 1800K | 24V DC | 95+/90+ | 5W/ft. | 375lm/ft. | Download | |
| QLUXF50001200LED3018WD | 3000K dims to 1800K | 24V DC | 95+/90+ | 5W/ft. | 375lm/ft. | Download | |
| QLUXF50001200LED3218WD | 3200K dims to 1800K | 24V DC | 95+/90+ | 5W/ft. | 375lm/ft. | Download | |
| Color Tunable | |||||||
| Model Number | CCT | Input Voltage | CRI/R9 | W/ft | L/ft | Data Sheet | |
| QLUX5000600LED92040 | 2000K-4000K | 24V DC | 90+/80+ | 3W/ft. | 230lm/ft. | Download | |
| QLUX5000600LED92065 | 2000K-6500K | 24V DC | 90+/80+ | 3W/ft. | 230lm/ft. | Download | |
| Single CCT | |||||||
| Model Number | CCT | Input Voltage | CRI/R9 | W/ft | L/ft | Data Sheet | |
| QLUXF5000300LED927 | 2700K | 24V DC | 97+/95+ | 4.4W/ft. | 303lm/ft. | Download | |
| QLUXF5000300LED930 | 3000K | 24V DC | 97+/95+ | 4.4W/ft. | 303lm/ft. | Download | |
| QLUXF50001200LED920 | 2000K | 24V DC | 95+/85+ | 7W/ft. | 480lm/ft. | Download | |
| QLUXF50001200LED922 | 2200K | 24V DC | 95+/85+ | 7W/ft. | 480lm/ft. | Download | |
| QLUXF50001200LED925 | 2500K | 24V DC | 95+/85+ | 7W/ft. | 480lm/ft. | Download | |
| QLUXF50001200LED927 | 2700K | 24V DC | 95+/85+ | 7W/ft. | 480lm/ft. | Download | |
| QLUXF50001200LED930 | 3000K | 24V DC | 95+/85+ | 7W/ft. | 480lm/ft. | Download | |
| QLUXF50001200LED935 | 3500K | 24V DC | 95+/85+ | 7W/ft. | 480lm/ft. | Download | |
| QLUXF50001200LED940 | 4000K | 24V DC | 95+/85+ | 7W/ft. | 480lm/ft. | Download | |
| COB Tapes | |||||||
| Model Number | CCT | Input Voltage | CRI/R9 | W/ft | L/ft | Data Sheet | |
| QLUXF50001200LEDCOB927 | 2700K | 24V DC | 92+/50+ | 4.5W/ft. | ~427lm/ft. | Download | |
| QLUXF50001200LEDCOB930 | 3000K | 24V DC | 92+/50+ | 4.5W/ft. | ~427lm/ft. | Download | |
| RGB | |||||||
| Model Number | CCT | Input Voltage | CRI/R9 | W/ft | L/ft | Data Sheet | |
| QLUX50001120LED3535R | RGB | 24V DC | N/A | 7W/ft. | 203lm/ft. | Download | |
| RGBTW | |||||||
| Model Number | CCT | Input Voltage | CRI/R9 | W/ft | L/ft | Data Sheet | |
| QLUXF50001440LED35RGBTW | RGBTW | 24V DC | 90+/60+ | 7W/ft. | 336lm/ft. | Download | |
| RGBTW-68 | |||||||
| Model Number | CCT | Input Voltage | CRI/R9 | W/ft | L/ft | Data Sheet | |
| QLUXF50001440LED35RGBTW-68 | RGBTW | 24V DC | 90+/60+ | 4.4W/ft. | 211lm/ft. | Download | |
