LTF LED Drivers Form Factor Guide

UniDrivers Series Case Form Factor	Wattages Available	Dimensions	IP Rating	Remote Cases Available

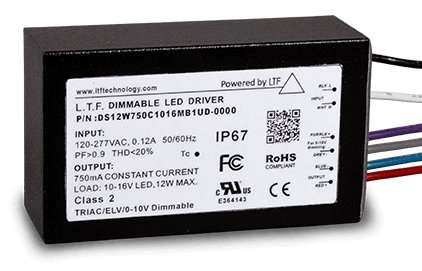

MB1	Up to 12W	68 x 40 x 22mm	IP67	G1, G4
MB2	Up to 12W	80 x 40 x 22mm	IP67	G1, G4
D2	Up to 12W	39.5(OD) x 47mm	IP67	N/A

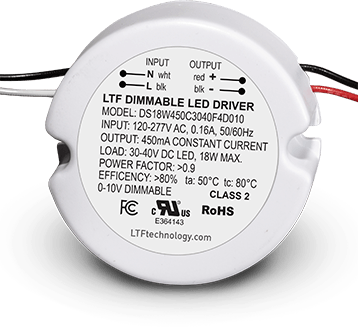

F4	Up to 15W	63mm (OD) x 28mm	IP44	G2, G3

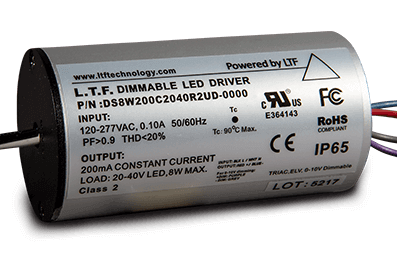

D3	Up to 16W	39.5(OD) x 86mm	IP65	N/A
BF	Up to 25W	77 x 31 x 21mm	IP64	G1, G4

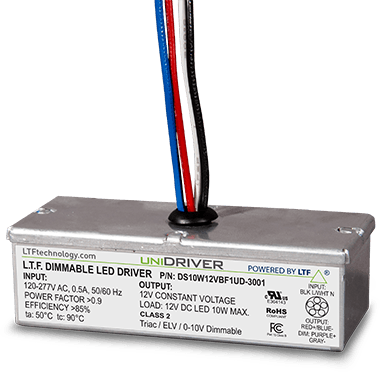

BF1	Up to 25W	77 x 31 x 21mm	IP64	G1, G4
LI1	Up to 25W	108 x 40 x 22mm	IP67	G1, G4
SM1	Up to 25W	111 x 43 x 24mm	IP44	G1, G4

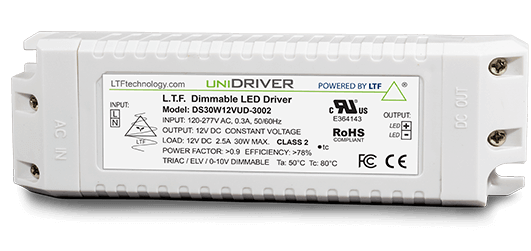

PT2	Up to 30W	150 x 47 x 30mm	IP44	G1, G4
SM2	Up to 40W	96 (110) x 55 x 24mm	IP44	G2, G3
F3	Up to 40W	71.5 x 62.5 x 30mm	IP44	G2, G3
BF2	Up to 42W	95 x 25.5 x 44.5mm	IP64	G2, G3

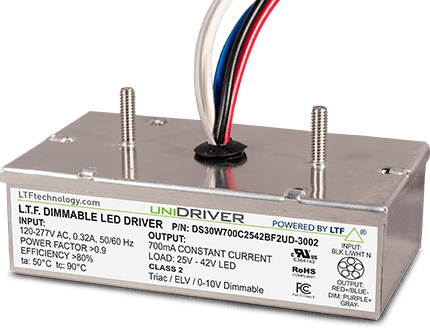

BF21	Up to 42W	95 x 25.5 x 44.5mm	IP64	G2, G3
LI2	Up to 42W	132 (148) x 40 x 22mm	IP67	N/A
LS3	Up to 42W	282 x 30 x 20mm	IP67	G7
SM3	Up to 42W	96 (110) x 50 x 24mm	IP44	G2, G3
BR2	Up to 75W	160 (135) x 57 x 37mm	IP65	G2, G3
F5	Up to 60W	170 (144) x 50 x 28mm	IP65	G2, G3

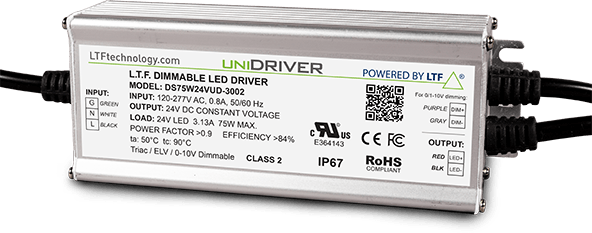

L19	Up to 75W	126 x 59 x 37mm	IP67	G2, G3
BR1	Up to 96W	172 (194) x 57 x 37mm	IP67	G2, G3
LI14	Up to 96W	360 x 34 x 34mm	IP67	N/A

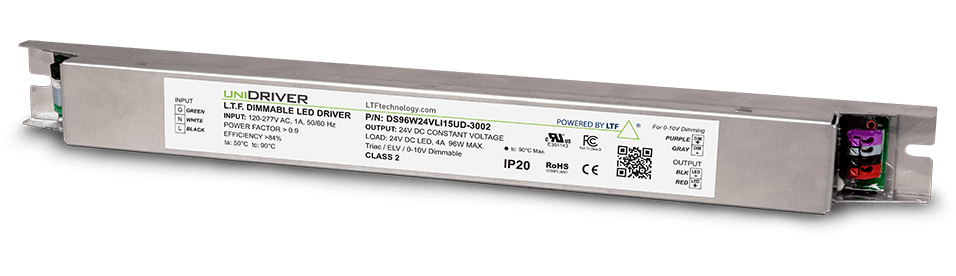

LI15	Up to 96W	380 x 34 x 35mm	IP20	N/A
OC1	Up to 40W	71.5 x 62.5 x 30mm	IP44	G1, G4
