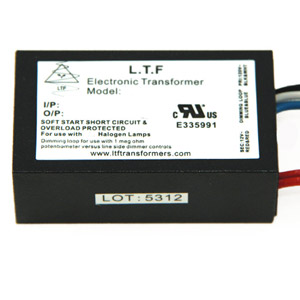

30W Electronic Transformers – TA, TE, TU Series
No Minimum Load for LED and Halogen Lighting
-
- ETL, UL recognized
- Short circuit protection
- Auto reset and thermal protection
- Soft start technology
- Fully dimmable with ELV and optional 0-10V dimmers
- Low profile, small form factor
- Advanced no load technology
- High power factor 30W Electronic Transformers
30W Electronic Transformers – TA Series 120V AC 50/60Hz, 0.25A Input
Download the Spec Sheet (PDF) 12V Output > or 24V Output >
| Model Number | Output Voltage | Load Type | Dimming | Form Factor | IP Rating |
|---|---|---|---|---|---|
| TA30WA12 | 12V AC | Incandescent and Halogen Bulbs | ELV Dimmable | B2 Standard | IP 60 |
| TA30WA24 | 24V AC | Incandescent and Halogen Bulbs | ELV Dimmable | B2 Standard | IP 60 |
| TA30WA12LED | 12V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | B2 Standard | IP 60 |
| TA30WA24LED | 24V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | B2 Standard | IP 60 |
| TA30WD12LED | 12V DC | LED Strips, LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | E Standard | IP 60 |
| TA30WD24LED | 24V DC | LED Strips, LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | E Standard | IP 60 |
| TA30WA12LEDD10 | 12V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | B2 Standard | IP 60 |
| TA30WA24LEDD10 | 24V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | B2 Standard | IP 60 |
| TA30WD12LEDD10 | 12V DC | LED Strips, LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | E Standard | IP 60 |
| TA30WD24LEDD10 | 24V DC | LED Strips, LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | E Standard | IP 60 |
UL Listed 30W Electronic Transformers – TA Series 120V AC 50/60Hz, 0.25A Input
For Indoor and Outdoor Applications
Download the Spec Sheet (PDF) 12V Output > or 24V Output >
| Model Number | Output Voltage | Load Type | Dimming | UL Listed Remote Enclosure | Indoor or Outdoor Use |
|---|---|---|---|---|---|
| TA30WA12RE | 12V AC | Incandescent and Halogen Bulbs | ELV Dimmable | G1 | Indoor |
| TA30WA24RE | 24V AC | Incandescent and Halogen Bulbs | ELV Dimmable | G1 | Indoor |
| TA30WA12REO | 12V AC | Incandescent and Halogen Bulbs | ELV Dimmable | G4 | Outdoor |
| TA30WA24REO | 24V AC | Incandescent and Halogen Bulbs | ELV Dimmable | G4 | Outdoor |
| TA30WA12LEDRE | 12V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | G1 | Indoor |
| TA30WA24LEDRE | 24V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | G1 | Indoor |
| TA30WA12LEDREO | 12V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | G4 | Outdoor |
| TA30WA24LEDREO | 24V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | G4 | Outdoor |
| TA30WD12LEDRE | 12V DC | LED Strips, LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | G1 | Indoor |
| TA30WD24LEDRE | 24V DC | LED Strips, LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | G1 | Indoor |
| TA30WD12LEDREO | 12V DC | LED Strips, LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | G4 | Outdoor |
| TA30WD24LEDREO | 24V DC | LED Strips, LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | G4 | Outdoor |
| TA30WA12LEDD10RE | 12V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | G1 | Indoor |
| TA30WA24LEDD10RE | 24V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | G1 | Indoor |
| TA30WA12LEDD10REO | 12V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | G4 | Outdoor |
| TA30WA24LEDD10REO | 24V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | G4 | Outdoor |
| TA30WD12LEDD10RE | 12V DC | LED Strips, LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | G1 | Indoor |
| TA30WD24LEDD10RE | 24V DC | LED Strips, LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | G1 | Indoor |
| TA30WD12LEDD10REO | 12V DC | LED Strips, LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | G4 | Outdoor |
| TA30WD24LEDD10REO | 24V DC | LED Strips, LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | G4 | Outdoor |
30W Electronic Transformers – TU Series 220-240V AC 50/60Hz, 0.14A Input
Download the Spec Sheet (PDF) 12V Output > or 24V Output >
| Model Number | Output Voltage | Load Type | Dimming | Form Factor | IP Rating |
|---|---|---|---|---|---|
| TU30WA12 | 12V AC | Incandescent and Halogen Bulbs | ELV Dimmable | B2 Standard | IP 60 |
| TU30WA24 | 24V AC | Incandescent and Halogen Bulbs | ELV Dimmable | B2 Standard | IP 60 |
| TU30WA12LED | 12V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | B2 Standard | IP 60 |
| TU30WA24LED | 24V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | B2 Standard | IP 60 |
| TU30WD12LED | 12V DC | LED Strips, LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | E Standard | IP 60 |
| TU30WD24LED | 24V DC | LED Strips, LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | E Standard | IP 60 |
| TU30WA12LEDD10 | 12V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | B2 Standard | IP 60 |
| TU30WA24LEDD10 | 24V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | B2 Standard | IP 60 |
| TU30WD12LEDD10 | 12V DC | LED Strips, LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | E Standard | IP 60 |
| TU30WD24LEDD10 | 24V DC | LED Strips, LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | E Standard | IP 60 |
UL Listed 30W Electronic Transformers – TU Series 220-240V AC 50/60Hz, 0.14A Input
For Indoor and Outdoor Applications
Download the Spec Sheet (PDF) 12V Output > or 24V Output >
| Model Number | Output Voltage | Load Type | Dimming | UL Listed Remote Enclosure | Indoor or Outdoor Use |
|---|---|---|---|---|---|
| TU30WA12RE | 12V AC | Incandescent and Halogen Bulbs | ELV Dimmable | G1 | Indoor |
| TU30WA24RE | 24V AC | Incandescent and Halogen Bulbs | ELV Dimmable | G1 | Indoor |
| TU30WA12REO | 12V AC | Incandescent and Halogen Bulbs | ELV Dimmable | G4 | Outdoor |
| TU30WA24REO | 24V AC | Incandescent and Halogen Bulbs | ELV Dimmable | G4 | Outdoor |
| TU30WA12LEDRE | 12V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | G1 | Indoor |
| TU30WA24LEDRE | 24V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | G1 | Indoor |
| TU30WA12LEDREO | 12V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | G4 | Outdoor |
| TU30WA24LEDREO | 24V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | G4 | Outdoor |
| TU30WD12LEDRE | 12V DC | LED Strips, LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | G1 | Indoor |
| TU30WD24LEDRE | 24V DC | LED Strips, LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | G1 | Indoor |
| TU30WD12LEDREO | 12V DC | LED Strips, LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | G4 | Outdoor |
| TU30WD24LEDREO | 24V DC | LED Strips, LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | G4 | Outdoor |
| TU30WA12LEDD10RE | 12V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | G1 | Indoor |
| TU30WA24LEDD10RE | 24V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | G1 | Indoor |
| TU30WA12LEDD10REO | 12V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | G4 | Outdoor |
| TU30WA24LEDD10REO | 24V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | G4 | Outdoor |
| TU30WD12LEDD10RE | 12V DC | LED Strips, LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | G1 | Indoor |
| TU30WD24LEDD10RE | 24V DC | LED Strips, LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | G1 | Indoor |
| TU30WD12LEDD10REO | 12V DC | LED Strips, LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | G4 | Outdoor |
| TU30WD24LEDD10REO | 24V DC | LED Strips, LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | G4 | Outdoor |
30W Electronic Transformers – TE Series 277V AC 50/60Hz, 0.1A Input
Download the Spec Sheet (PDF) 12V Output > or 24V Output >
| Model Number | Output Voltage | Load Type | Dimming | Form Factor | IP Rating |
|---|---|---|---|---|---|
| TE30WA12 | 12V AC | Incandescent and Halogen Bulbs | ELV Dimmable | B2 Standard | IP 60 |
| TE30WA24 | 24V AC | Incandescent and Halogen Bulbs | ELV Dimmable | B2 Standard | IP 60 |
| TE30WA12LED | 12V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | B2 Standard | IP 60 |
| TE30WA24LED | 24V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | B2 Standard | IP 60 |
| TE30WD12LED | 12V DC | LED Strips, LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | E Standard | IP 60 |
| TE30WD24LED | 24V DC | LED Strips, LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | E Standard | IP 60 |
| TE30WA12LEDD10 | 12V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | B2 Standard | IP 60 |
| TE30WA24LEDD10 | 24V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | B2 Standard | IP 60 |
| TE30WD12LEDD10 | 12V DC | LED Strips, LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | E Standard | IP 60 |
| TE30WD24LEDD10 | 24V DC | LED Strips, LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | E Standard | IP 60 |
UL Listed 30W Electronic Transformers – TE Series 277V AC 50/60Hz, 0.1A Input
For Indoor and Outdoor Applications
Download the Spec Sheet (PDF) 12V Output > or 24V Output >
| Model Number | Output Voltage | Load Type | Dimming | UL Listed Remote Enclosure | Indoor or Outdoor Use |
|---|---|---|---|---|---|
| TE30WA12RE | 12V AC | Incandescent and Halogen Bulbs | ELV Dimmable | G1 | Indoor |
| TE30WA24RE | 24V AC | Incandescent and Halogen Bulbs | ELV Dimmable | G1 | Indoor |
| TE30WA12REO | 12V AC | Incandescent and Halogen Bulbs | ELV Dimmable | G4 | Outdoor |
| TE30WA24REO | 24V AC | Incandescent and Halogen Bulbs | ELV Dimmable | G4 | Outdoor |
| TE30WA12LEDRE | 12V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | G1 | Indoor |
| TE30WA24LEDRE | 24V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | G1 | Indoor |
| TE30WA12LEDREO | 12V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | G4 | Outdoor |
| TE30WA24LEDREO | 24V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | G4 | Outdoor |
| TE30WD12LEDRE | 12V DC | LED Strips, LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | G1 | Indoor |
| TE30WD24LEDRE | 24V DC | LED Strips, LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | G1 | Indoor |
| TE30WD12LEDREO | 12V DC | LED Strips, LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | G4 | Outdoor |
| TE30WD24LEDREO | 24V DC | LED Strips, LED Bulbs, Incandescent and Halogen Bulbs | ELV Dimmable | G4 | Outdoor |
| TE30WA12LEDD10RE | 12V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | G1 | Indoor |
| TE30WA24LEDD10RE | 24V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | G1 | Indoor |
| TE30WA12LEDD10REO | 12V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | G4 | Outdoor |
| TE30WA24LEDD10REO | 24V AC | AC LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | G4 | Outdoor |
| TE30WD12LEDD10RE | 12V DC | LED Strips, LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | G1 | Indoor |
| TE30WD24LEDD10RE | 24V DC | LED Strips, LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | G1 | Indoor |
| TE30WD12LEDD10REO | 12V DC | LED Strips, LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | G4 | Outdoor |
| TE30WD24LEDD10REO | 24V DC | LED Strips, LED Bulbs, Incandescent and Halogen Bulbs | 0-10V and ELV Dimmable | G4 | Outdoor |
