What Is a Shale Shaker Screen and How Does It Work?

A shale shaker screen is a critical component in the drilling industry. It helps separate solid particles from drilling fluids. This process is essential for maintaining efficiency and safety during operations. Understanding how a shale shaker screen works can enhance drilling performance.

These screens are designed to withstand harsh conditions. They must be durable and effective in filtering out unwanted materials. Yet, not all screens perform equally well. Sometimes, they fail to capture the finest particles, leading to fluid contamination. This raises questions about their reliability and overall effectiveness.

In the quest for improved drilling, the importance of the shale shaker screen cannot be overlooked. Its role in the entire drilling process is significant. However, users must reflect on their choice of screens and their maintenance. Proper attention can lead to better outcomes, while neglect can result in costly setbacks.

What Is a Shale Shaker Screen? An Overview of Its Purpose

A shale shaker screen plays a crucial role in the oil and gas industry. It is part of the drilling fluid management system. Essentially, it separates the solids from the liquid in drilling mud. This process is vital for maintaining the efficiency of drilling operations. Without it, unwanted particle accumulation can occur, leading to equipment wear and higher costs.

The screen itself is typically made from layered mesh materials. It filters out cuttings and debris while allowing the fluid to pass through. Operators adjust the shaker's vibration settings based on the nature of the drilling environment. This ensures optimal performance during various drilling conditions. Over time, the screens may wear out. Regular inspections are needed to identify when screens require replacement.

In practice, the effectiveness of a shale shaker screen can sometimes be underestimated. Not every operator fully recognizes its importance. A worn screen might still function but not efficiently. This subtlety can lead to operational challenges. Understanding the nuances of screen performance is essential for better outcomes. Recognizing these details can greatly improve drilling operations.

The Components of a Shale Shaker Screen and Their Functions

A shale shaker screen is essential in drilling operations. It separates solids from drilling fluid. Understanding its components helps in comprehending its function.

The screen itself is the primary part. It allows the liquid to pass while retaining larger particles. Materials used in screens vary. Some are made of metal, while others use synthetic materials. The mesh size is critical. Smaller openings trap fine particles, but this can also slow fluid movement. There’s a balance between efficiency and flow rate.

Support frames enhance the screen's durability. They must withstand heavy vibrations. Springs play a vital role in maintaining tension. Under-vibration, screens can wear out quickly. Regular inspection is necessary. Each component impacts the overall performance of the shaker. A small issue can lead to substantial operational problems. Flawed designs may hinder fluid separation, leading to complications.

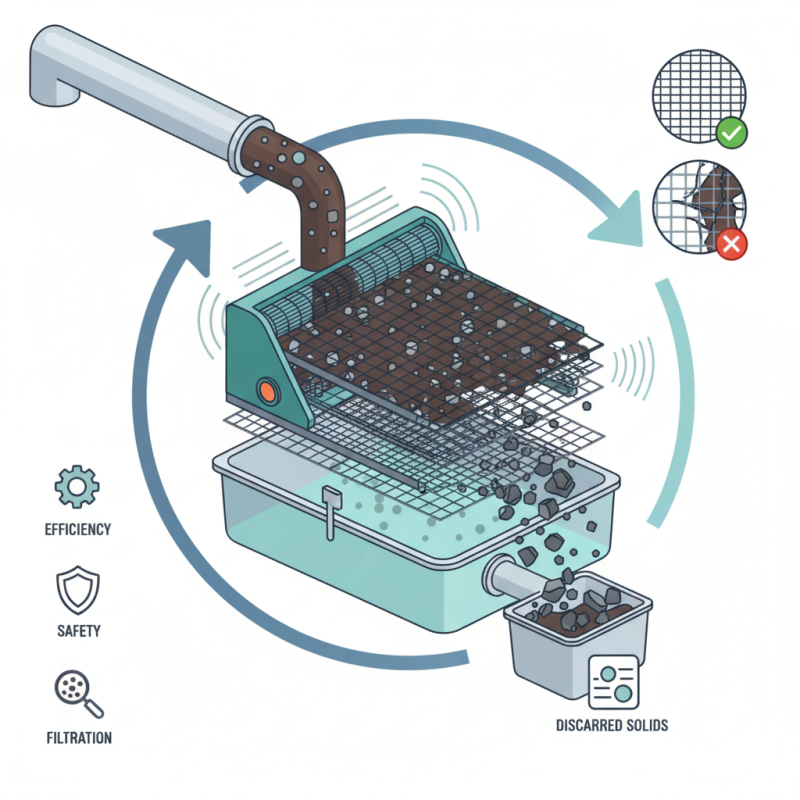

How Shale Shaker Screens Filter Solids in Drilling Fluids

Shale shaker screens play a critical role in drilling operations. They are designed to filter solids from drilling fluids, ensuring the efficiency of the drilling process. These screens separate rock cuttings and other debris from the fluid, which can be reused or discarded. This filtration helps maintain the quality of the drilling fluid, allowing for smoother operations.

The process begins when drilling fluid is pumped onto the shaker screen. As the fluid flows over the screen, the solid particles are trapped while the clean liquid passes through. This allows for the recirculation of valuable drilling fluid. Not all solids can be easily filtered, though. Some fine particles can clog the screen. Regular maintenance is essential to prevent this issue.

Adjustments to screen tension and mesh size can improve filtering capabilities. Operators must continuously monitor the shakers for optimal performance. While advancements in screen technology have been made, challenges remain. Finding the right balance between fluid recovery and solids removal is not always straightforward. Frequent checks and adjustments are necessary to enhance efficiency in the field.

What Is a Shale Shaker Screen and How Does It Work?

Performance Metrics: Measuring the Efficiency of Shale Shaker Screens

Shale shaker screens play a crucial role in drilling operations by separating solid particles from drilling mud. Their performance can significantly impact efficiency and operational costs. Evaluating performance metrics is essential to ensure optimal functioning. Key metrics include cut point, screen area, and flow capacity.

Cut point refers to the size of the particles that the screen can effectively separate. It is vital to match the shaker screen to the drilling conditions. An inadequate cut point may result in excessive solids in the mud, affecting pump performance. Screen area directly influences the volume of mud that can flow through a shaker. Insufficient area can lead to clogs and inefficient solids removal.

Flow capacity also matters. It indicates how quickly mud can pass through the screen without causing excessive pressure drop. Testing different configurations is important. You might discover that the best setup today isn't ideal tomorrow. Evaluating and adjusting performance metrics regularly can lead to better efficiency and lower costs in the long run.

Industry Applications: Understanding Shale Shaker Screens in Oil & Gas Exploration

Shale shaker screens are essential in oil and gas exploration. They help separate drilling fluids from solid particles. In this industry, efficiency is key. Every second counts during drilling operations. Shale shakers use these screens to maintain fluid cleanliness, preventing clogging in the system.

Different applications require various types of screens. Some are thicker and more robust, while others are finer. This variability allows for adaptability in challenging environments. The materials and dimensions are selected based on specific drilling conditions. However, many operators overlook maintenance. Neglected screens can lead to lower efficiency and increased costs.

Using quality screens ensures better performance. However, not every screen lasts. Operators should analyze wear patterns and replace screens as needed. Ignoring this can affect the entire drilling operation. While shaker screens are crucial, they demand attention. Investing in proper upkeep can yield significant returns.
